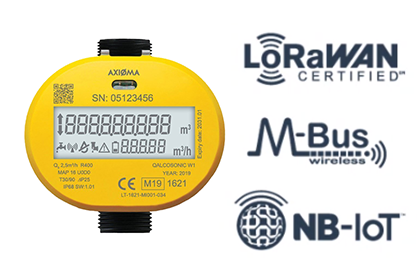

Smart ultrasonic water meter QALCOSONIC W1
Designed for accurate measurement of cold And hot water consumption in households, Apartment buildings and commercial premises.
- Durable composite body.
- Diameter adapted to customer needs ( DN15 – DN50 ).
- Battery lifetime up to 16 years.
- Fully waterproof ( IP68 class ).
- Integrated dual radio communication wM-BUS, LoRaWAN and NB IoT.
- Wide measurement range: R400/R800.
- Smallest smart water meter in the market.

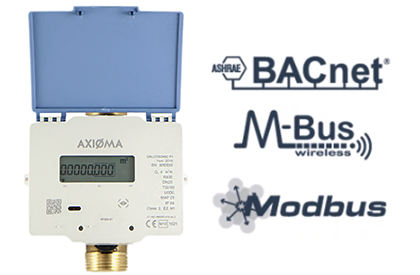

Smart ultrasonic water meter QALCOSONIC F1
Designed for accurate measurement of cold And hot water consumption in households, buildings and Industrial application.
- Brass body.
- Diameter adapted to customer needs ( DN65 – DN100 ).
- Battery lifetime up to 16 years.
- Fully waterproof ( IP65 / IP68 class ).
- Integrated dual radio communication wM-BUS, LoRaWAN .
- Wide measurement range: R250/R400.
- Wired: M-BUS/Modbus/BACnet/Pulse Wireless: wM-BUS/LoRaWan

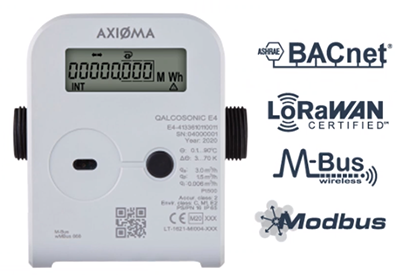

Smart ultrasonic H/C energy meter QALCOSONIC E4 - BTU
Designed to measure heating and cooling energy consumption , where data are recorded In two separated registers. The meter is used In the district heating object.
- Durable composite body.
- Diameter adapted to customer needs ( DN15 – DN40 ).
- Battery lifetime up to 16 years.
- Fully waterproof ( IP65/IP67/IP68 class ).
- Integrated dual radio communication
- Wide measurement range: R400/R800.
- Wide measurement range: R100/R250.
- Flexible configuration.

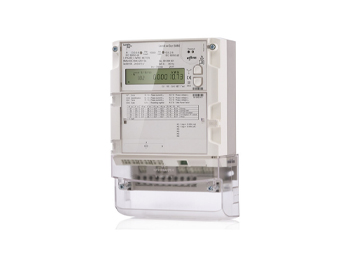

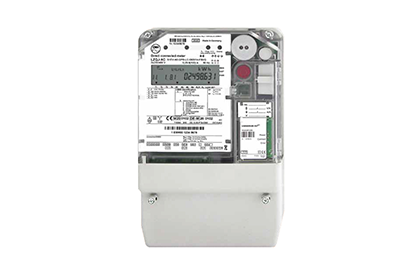

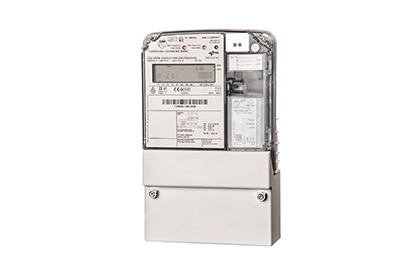

LZQJ-XC
| Direct Connection Meter 4 – Conductor meter | |
|---|---|
| Voltage | 3 x 127/220 V... 3 x 240/415 V |
| Current | 5(60) A, 10(60) A, 5(100) A, 10(100) A |
| Current Transformer Meter Cl. B (Cl. 1)4 , 3 , 2 – Conductor meter | |
|---|---|
| Voltage | 3 x 58/100 V...3 x 240/415 V 3 x 100 V...3 x 415 V 100 V...240 V |
| Current | 1(6) A, 1(10) A, 5 A, 1 A, 5(20) A |
| High precision meter - Cl. C (Cl. 0.5 S) , Cl. 0.2 S4 , 3 , 2 – Conductor meter | |
|---|---|
| Voltage | 3 x 58/100 V...3 x 240/415 V 3 x 100 V...3 x 415 V 100 V...240 V |
| Current | 1(6) A, 1(10) A, 5 A, 1 A, 5(20) A |

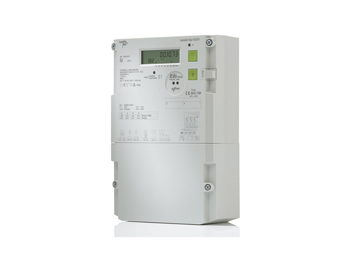

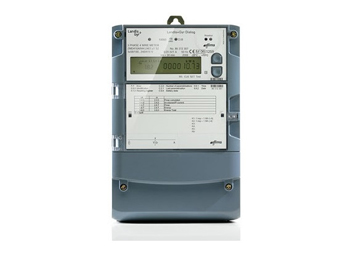

LZQJ-SGM
4-quadrant meter / combi meter
| Direct Connection Meter 4 – Conductor meter | |
|---|---|
| Voltage | 3 x 220/380 V... 3 x 240/415 V |
| Current | 0.25 – 5 (100) A |
| Current Transformer Meter Cl. B (Cl. 1)4 – Conductor meter | |
|---|---|
| Voltage | 3 x 58/100 V – 3 x 240/415 V 3 x 58/100 V or 3 x 63/110 V 3 x 115/200 V or 3 x 127/220 V 3 x 220/380 V or 3 x 230/400 V 3 x 240/415 V |
| Current | 0.01–1(10) A |
Communication Module:

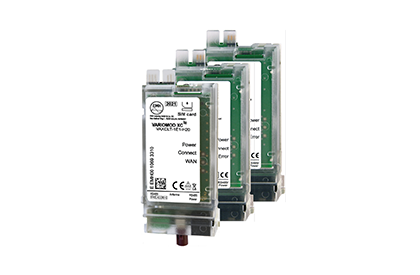

Meter modem VARIOMOD-XC
(LTE, GPRS, Ethernet)
interface module
(RS232, RS485)
Signal Module:

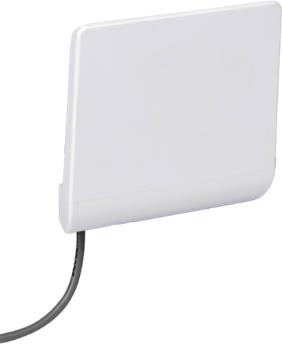

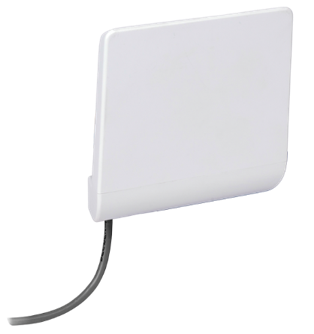

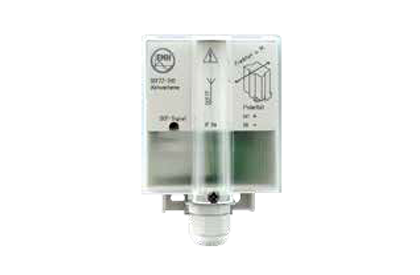

DCF antenna
DCF77-TH2
LZQJ-SGM
4-quadrant meter / combi meter Cl 0.5S / 0.2S
| Current Transformer Meter | |
|---|---|
| Voltage | 3 x 58/100 V – 3 x 240/415 V 3 x 58/100 V – 3 x 277/480 V 3 x 58/100 V or 3 x 63/110 V 3 x 115/200 V or 3 x 127/220 V 3 x 220/380 V or 3 x 230/400 V 3 x 240/415 V |
| Voltage | 3 x 100 V – 3 x 415 V 3 x 100 V – 3 x 415 V 3 x 100 V or 3 x 110 V 3 x 415 V or 3 x 480 V |
| Current | 0.01 – 1(10) A or 0.05 – 5(20) A |
| Current Transformer Meter Cl. B (Cl. 1)4 – Conductor meter | |
|---|---|
| Voltage | 3 x 58/100 V – 3 x 240/415 V 3 x 58/100 V or 3 x 63/110 V 3 x 115/200 V or 3 x 127/220 V 3 x 220/380 V or 3 x 230/400 V 3 x 240/415 V |
| Current | 0.01–1(10) A |

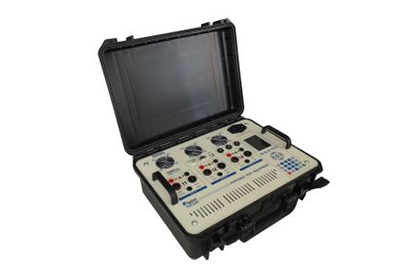

Portable Test Equipment
Multi-function portable signal source with integrated working standard of power and energy

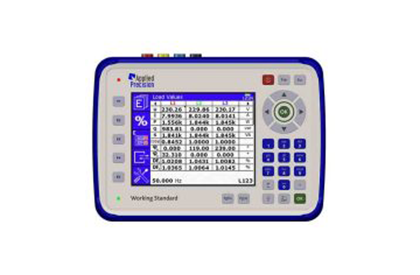

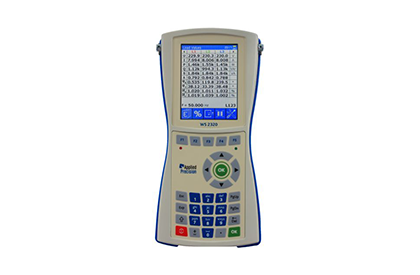

Working Standard WS 2330
Multifunction hand-held working standard for on site meter testing
Working Standard WS 2*20
Multifunction hand-held working standard on site meter testing

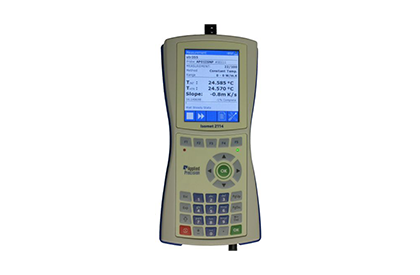

Isomet 2114
Portable hand-held measuring instrument for direct measurement of heat transfer properties
The entire company is certified to ISO 9001:2015, ISO 14001:2015, ISO 27001:2013 and ISO 45001:2018. GWF is an accredited Swiss calibration agent and verification laboratory to ISO 17025:2018. Our product portfolio includes equipment and systems that are used in potentially explosive atmospheres. The management system has been audited and certified to DIN EN ISO 80079-34:2012 in accordance with the European Directive 2014/34/EU, which relates to equipment and protective systems intended for use in potentially explosive atmospheres.
Water Meter:

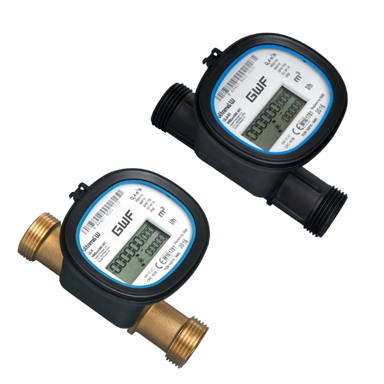

Ultrasonic flow meter SONICO® EDGE
- Minimal pressure loss < 0.09 bar,
- U0/D0, no need for flow conditioners,
- Pressure ratings up to PN 16,
- Medium temperature range 0.1 °C to + 50 °C,
- Degree of protection IP68,
- Tamper-proof,
- IR interface for firmware update, parameter setting, and data readout,
- Integrated data logger incl. min./max. values,
- Integrated medium temperature measurement.

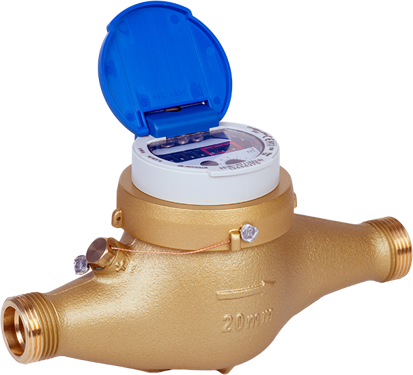

Single jet cold/hot - UNICOcoder® NTEP- EPe10121
- Multi jet domestic water meter for cold water up to 30°C DN 15, 20, 25, 32, 40, 50.
- Multi jet impeller wheel, super dry-dial, magnetic coupling , Q3 2,5: Measuring range R100 , Q3 4–25: Measuring range R160 , 8 dial resolution with 3 comma place , Maximum operation pressure PN 16 bar , Maximum operating temperature 30°C , Horizontal or vertical installation (Vertical riser/down pipe) , High grade wear resistant and corrosion proof materials.

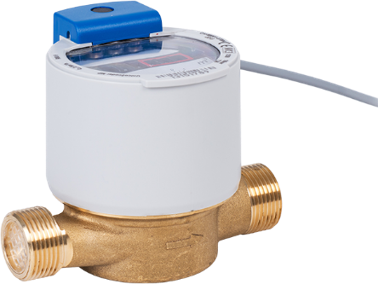

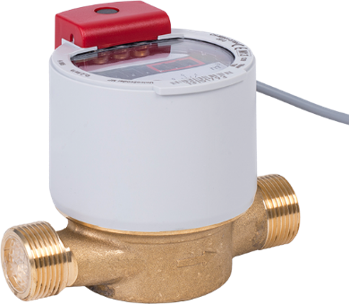

Single jet UNICOcoder ® MP-EPe10123
- Single jet consumption meter with M-Bus interface EN 13757-2 for cold water up to 30 °C / 50 °C DN 15, 20 .
- Single jet dry-dial meter with magnetic coupling ,
- 8 dial resolution with 3 comma place ,
- Register can be turned for best readout position,
- Maximum operating pressure PN 16 bar ,
- Maximum operating temperature 30 °C / 50 °C,
- Horizontal or vertical installation,

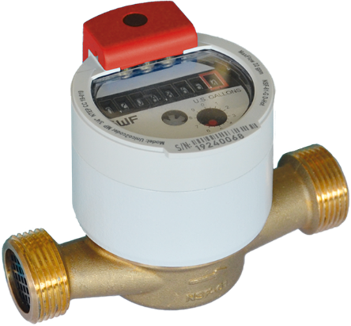

Single jet cold/hot - UNICOcoder® NTEP-EPe10129
Mechanical roller register with 0.1 US gallons resolution: Efficient consumption monitoring in energy data management Transfer of the effective meter reading: No data loss and high quality of billing data Register without batteries: No service life restriction Robust, high grade wear resistant materials: Excellent measuring stability and reliability Measurement of low flow rates: Increased cost effectiveness

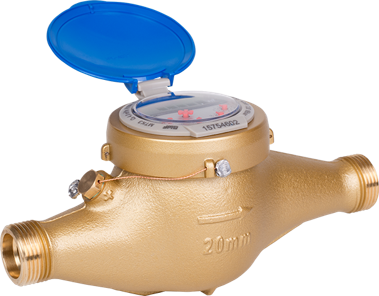

MTK -EPe10123
- Multi jet domestic water meter for cold water up to 30°C DN 15, 20, 25, 32, 40, 50.
- Multi jet impeller wheel, super dry-dial, magnetic coupling , Q3 2,5: Measuring range R100 , Q3 4-25: Measuring range R160 , Easy to read roller counter due to large white figures on black background , 5 dial resolution without comma place , Maximum operation pressure PN 16 bar , Maximum operating temperature 30 °C , Horizontal or vertical installation (Vertical riser/down pipe).
Single jet - UNICOcoder® MP-EPe20128
- Single jet consumption meter with M-Bus interface EN 13757-2 for warm water up to 90 °C DN 15, 20
- Residential consumption monitoring of water consumption within an entire building , Water meter with M-Bus data communication.
- Singlejet dry-dial meter with magnetic coupling.
- Mechanical roller register with 1-litreresolution: Efficient consumption monitoring in energy data management

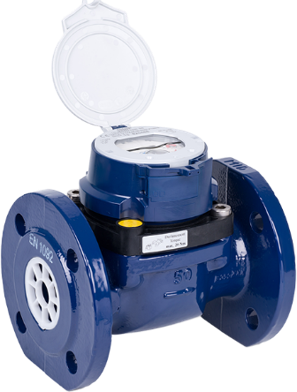

Bulk flow meters GWFcoder® register MP-EPe10224
- Bulk water meters with GWFcoder® register MP for cold water up to 50 °C DN 40, 50, 65, 80, 100, 125, 150, 200, 250, 300.
- Universal installation position ,No straight flow section required before the meter , Register can be turned through 355° ,Maximum operating pressure PN 16 bar ,Temperature up to 50 °C , Rotor is hydrodynamic ally, radially, and axially balanced , Available in the standard installation lengths for WS and WP meters , Powder coating provides optimum corrosion protection , Non-ferrous metal design up to PN 16 bar.

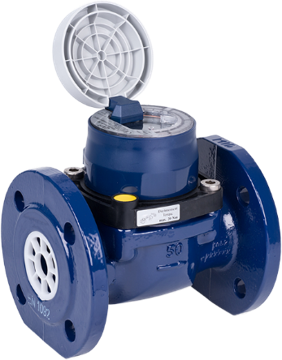

Meistream standard pulser register_EPe10220
- Bulk water meters for cold water up to 50°C DN 50, 65, 80, 100, 125, 150, 200, 250, 300.
- Universal installation position , No straight flow section required before the meter ,Register can be turned through 355° , Maximum operating pressure PN 16 bar , Temperature up to 50°C , Rotor is hydrodynamic ally, radially, and axially balanced , Available in the standard installation lengths for WS and WP meters , Powder coating provides optimum corrosion protection , Non-ferrous metal design up to PN 16 bar.
Ultrimis W
- Ultrasonic Flow Meter DN 15, 20, 25, 32, 40, 50.
- State-of-the-art ultrasonic flow meter with the patented W-Sonic technology , Starting flow already from 0,75 l/h at DN 15 , Q3 2,5 – 25: Measurement range up to R800 (default R250) in any operating orientation (H, V, H/V) , All materials in contact with water are free of heavy metal (composite meter body) , Flood proof meter (IP68 / mineral glass cover) with integrated data interface NFC and RF (434 or 868 MHz, wireless M-Bus / OMS) , High resistance to hydraulic shock and insensitive to magnetic fields , Maximum operating pressure PN 16 bar , Maximum operating temperature 50 °C .
Communication Modules:

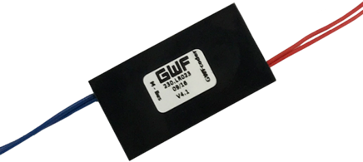

RCM_EPe40232
868 MHz Wireless M-Bus GWFcoder® Radio Module. Battery powered, wireless M-Bus radio module , Radio transmission in license free 868 MHz frequency band , Water proof design for pit installations (protection class IP68) , Transmission of data protocol by wireless M-Bus acc. EN 13757-4 (OMS®) , Simple installation and automatic start-up after connecting to meter ,Transmission of latest register value as well as monthly key date value , AES128 encrypted wireless protocol , For all meter types with GWFcoder® register and SCR(IEC) interface.
RCM-LoRaWAN_EPe40261
- Lora WAN™ 868 MHz, GWFcoder® Radio module Low Power Wide Area Network (LPWAN).
- Battery powered, Lora WAN radio module ,Radio transmission in license free 868 MHz frequency band , Water proof design for pit installations (protection class IP68) , Transmission of latest register value and further information , For all meter types with GWFcoder® / GWFcoder® MP register with SCR(IEC) or ECO interface (gas / water, domestic and industrial meters) , Split-connection (cable) to the meter – remote installation , Data transmission in accordance with Lora WAN specification.
MBW BLUE EPe40303
Bluetooth radio receiver. Meter with a radio module can be read out conveniently (e.g. from a moving vehicle) using the portable MBW BLUE radio receiver. If the MBW BLUE is in a reception range of a radio module, the data received from the meter is saved in the internal memory and transferred to the mobile readout unit via Bluetooth radio link. On the readout unit, the meter data is assigned to the customer and saved.
Interface M-Bus-SCRP_EPe40221
- Remote meter reading. Data compatibility – for the M-Bus master, the interface acts like a GWFcoder® meter with integrated M-Bus. Interface converter between SCR (IEC) and M-Bus: Conversion without meter exchange
- Automatic allocation of primary address Simplified start-up of electric meters with integrated M Bus master interface (Smart Metering)
Electrical Meter:

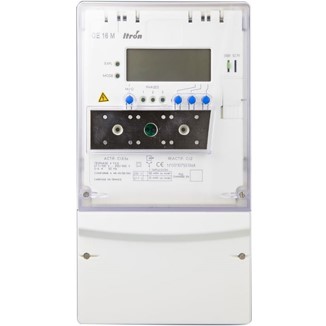

Itron ACE SL7000 QE16
The ACE7000 QE16M remote reading three-phase meter is primarily used by customers of the Green Tariff A on the French Network. It is particularly used for Emeraude supply agreements where voltage quality measurement is required.The ACE7000 QE16M is compatible with the Prisme concept and can therefore support tariffication changes by simply uploading the new tariff on site via a portable PC or remotely via an internal PSTN or external GSM modem.

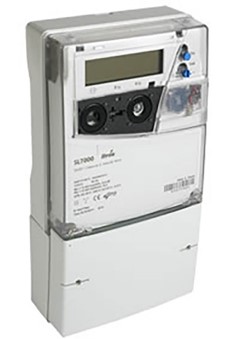

Itron ACE SL7000
The ACE SL7000 meter is a mature and reliable meter ideally suited to commercial, industrial and substation applications with a large installed base around the world. The future-proof concept of the ACE SL7000 meter ensures that it continues to respond to all new market requirements. The ACE SL7000 is also available in customized versions for local requirements. The ACE SL7000 is compatibile with several communication modes (PSTN, GPRS, IP...) to ensure adaptability with existing infrastructures and therefore reduce data collection costs.

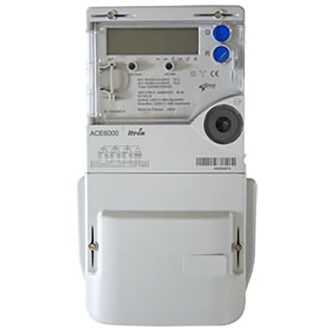

Itron ACE 6000
The ACE6000 four-quadrant load profiling meter is a cost-effective meter ideally suited to the commercial and industrial market. Using the same proven technology as the ACE SL7000, the ACE6000 is compliant with IEC and MID standards (for european countries). The ACE6000 is also available in customised versions for local requirements such as the ACE6000 DC4 in Germany, ACE6000 ST4 in Spain and the ACE6000 PME/PMI in France.

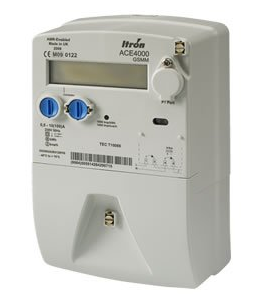

Itron ACE 4000
The ACE4000 meter range is a reliable and costeffective solution for residential smart metering that combines Itron’s metering expertise with high quality communication technologies. The ACE4000 meter range is designed to support multi-utility and sub-metering applications. Billing registers from other metering devices, including third party, gas, water and heat meters, can be retrieved with the ACE4000 meter acting as the M-Bus master
Itron EM425
The EM425-UK is the latest evolution of residential electricity metering from Itron. The two processors which separate metrology from functionality allow for a range of features including complex tariffs, prepayment rules and load management data to be easily updated post installation. Field swappable modules (FSM) will be supported for wide area network communications such as GPRS or long range radio. The graphics capable dot matrix display can display customised messages.

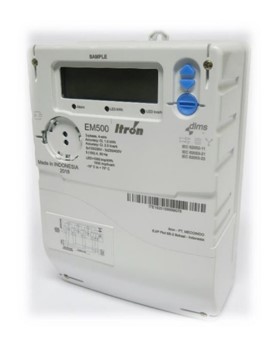

Itron EM500
Itron EM500 meters employ an evaluative platform for advanced metering infrastructure (AMI) to support the new needs arising from the modernization of electricity network. EM500 is designed to meet broader set of advanced metering, control and smart grid requirement that many utilities are facing today.Compliant with IEC standards, these meters include large innovative capabilities and support data access via local and remote communication.
Communication Modules:
Itron ACE Sparklet
The ACE Sparklet modem is dedicated to large-scale industrial and commercial applications, where easy installation and optimized cost are key. Extremely compact, the ACE Sparklet can be fully integrated under the terminal cover of the meter ensuring a fully secured solution, diminishing the risk of external fraud. It is compliant with the broad range of Itron meters already installed in the field like SL7000, ACE6000 and ACE8000. Available in the variants: PSTN, GSM/GPRS, Ethernet
Itron ACE Sparkline
The ACE Sparkline GSM/GPRS is the newest member of the successful Sparkline product family. The ACE Sparkline III GSM/GPRS modem can be used in classic GSM operating mode or in mixed mode. At the same time, the device itself can be reached at any time with an active GPRS connection for a GSM call (CSDCall). This is particularly interesting for servicing and allows a high degree of fl exibility and investment security.
Itron AnyQuest Cyble Enhanced Radio Module
Built on Itron proven expertise to design and manufacture high performance radio modules, AnyQuest Cyble Enhanced opens the way to a new generation of modules offering benefits of unprecedented functionalities within a mobile data collection system
CF 55 Calculator
The CF 55 is the most advanced calculator issued from Itron’s CF Heat Meter Family. It is designed for use by Heat/Cooling Utilities which face today’s complex networks management. High performance tools help the management of contracts with end clients, other tools gather all data necessary to analyse network performance. All different data is available directly or through the wide communication choices.
Water Meter:
Itron Echodis+
Static Water Meter combines last end ultrasonic measurement technology with high performing radio frequency and MBus open communication to help Water Utilities in revenue protection. With no moving parts, the Static Water Meter allows for protection against unplanned maintenance costs and provides accurate measurement over the entire product life. Integrated AMI & AMR offers the benefi ts of tailored functionalities within mobile or fixed collection systems. Pulse output is also available for dedicated customer system.
Itron Sharp Flow
SharpFlow is a static battery-powered electromagnetic meter. Available in nominal diameters from DN25 to DN300, it exists in compact or remote-read versions. Its IP68 water-resistance rating level enables it to be installed in fl ood areas and it can even be buried. SharpFlow is approved for commercial transactions as per European Directive MI-001. Its accuracy of measurement over a wide range of fl ows complies with European standard specifi cations ISO/EN and OIML.
Electrical Meter:

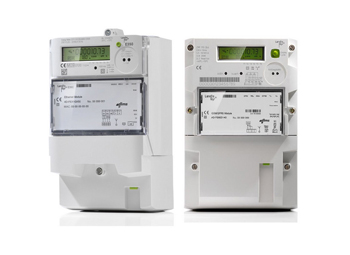

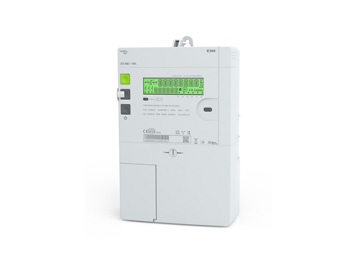

Landis+Gyr E350
The E350 is an advanced modular residential meter; which when combined with an appropriate communication module
provides powerful e-metering, network monitoring, multi-energy data collection, and remote and local communication across a variety of communication media. E350 is available as 1ph, 3ph/4W and 3ph/3W connection types with and without Supply Control Switch.
Landis+Gyr E360
The new E360 family introduces a new integrated E360 LTE meter supporting CAT M1 and NB-IoT protocols. The technology is designed to cope with today’s IoT development because it can connect a large number of different devices into a single network. It is capable of transferring data cost-efficiently and very reliably compared to previously available mobile technologies.
Landis+Gyr E570
E570 is a smart-transformer-connected electricity meter for low and medium voltage applications in commercial, light industrial and residential use with high electricity demand. Landis+Gyr has developed this meter series as the first generation of IDIS interoperable current transformer (CT) and current and voltage transformer (CT/VT) connected meters with powerful and future-proof AMI functionality. The E570 is available either with PLC or P2P communication technology. For PLC communicating devices, Landis+Gyr offers PLAN+ and G3-PLC technologies and for P2P (also known as mobile or cellular group), 2G/GPRS, 2G/4G and a standalone option.
Landis+Gyr S650
The S650 Smart Grid Terminal (SGT) current transformer connected type is the perfect fit to equip medium-voltage and low-voltage (MV/LV) transformer stations covering losses computing, energy profile analysis, protection and optimization of equipment, power quality monitoring, and remote equipment monitoring and control. The losses calculation is computed between consumers and the S650 SGT according to MID or local approved standards. Covering most of the energy calculation use cases, the S650 records active and reactive energy consumptions according to tariffs, energy analysis, etc
Landis+Gyr E650
The E650 meter from Landis+Gyr is a leading meter for maximum performance in industrial, commercial and smart grid applications. The E650 basic version (without module insertion) communicates by integrated CS-, RS-232 and RS-485 interfaces. In the CU model (communication units), the number of transfer technologies is not only multiplied the method also allows modules to be easily exchanged at any time.
Communication Module:

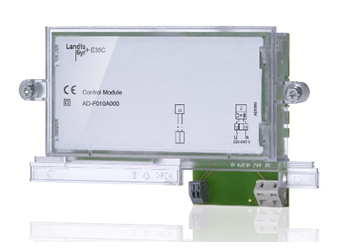

Landis+Gyr E35C
The E35C communication module has been designed to meet the latest smart metering requirements, building on the flexibility of Landis+Gyr's E350 meters and modules. The E35C supports a multi-energy AMI solution and can be connected to up to four gas, heat and water meters through M-bus,making them accessible from a central station.
Landis+Gyr CU_L52_E65C
Landis+Gyr provides the broadest selection of communication units to fit the utility network architecture, size and the existing communication infrastructure. Our modules do not just establish connection to a fixed installation (RS-232, RS-485, Ethernet), they support the remote transfer via LTE, UMTS or GPRS. Compliance with open communication protocols like IEC-62056-21 or DLMS ensures flexibility and future-proof communication media choices.
Water Meter:

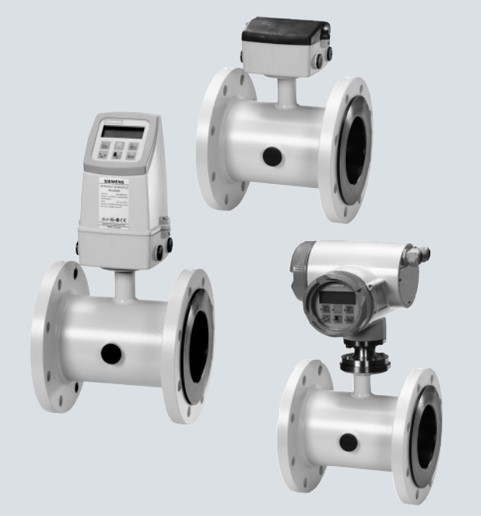

Mag Flow Meter – SIEMENS 7ME6520 (DN25-DN300)
- SITRANS MAGFLO MAG5100 W Flow sensor
- DN 25 (1 inch), DN40 (1-1/2 inch), DN50 (2 inch), DN65 (2-1/2 inch), DN80 (3 inch), DN100 (4 inch), DN150 (6 inch), DN200 (8 inch), DN250 (10 inch) & DN300 (12 inch) sizes available (DN350 to DN1200 on request)
- AS4087 PN16 Flanges & carbon steel housing EPDM lining with Hastelloy electrodes.
- Preferred Mag Flo Meter for Trade Waste Outflow Monitoring by many Water Authorities
- The flow measuring principle is based on Faradays law of electromagnetic induction according to which the sensor converts the flow into an electrical voltage proportional to the velocity of the flow.
